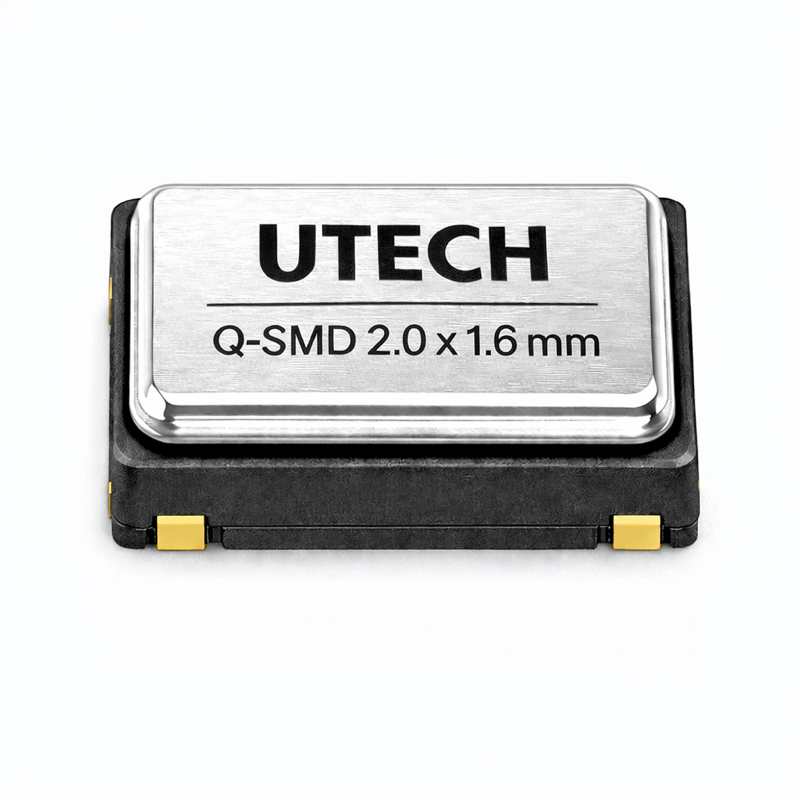

Q-SMD2016-M4-48.000000 MHz-FU-11-10/12-3085 (ESR22R)

• A 1.00 Manufacturer Name
  • UTECH
• Q 3.09a Shunt Capacitance C0
  • 3
• A 1.05 VPE TR3000
• A 1.06 Date Created
  • 2026-01
• A 1.02 Description
  • Quartz Crystal Resonator
• A 1.01 Manufacturer Part No. -
• Q 3.01 Nominal frequency (Fo) 48.000000 MHz
• A 1.04 Dimension & Type SMD2016 (2.0 x 1.6 mm)
• Q 3.02 Oscillation Mode Fundamental AT
• Q 3.03 Load Capacitance (CL) 11.0 pF
• Q 3.04 Freq. Tol. max. (at +25℃) ±10 ppm max.
• Q 3.05 Freq. Stability Vs Temp. max.: ±12 ppm max.
• Q 3.06 Operating Temp. Range -30°C ~ +85°C
• Q 3.07 Storage Temp. Range -55°C ~ +125°C
• Q 3.08 Equivalent Res. (ESR) 22 Ω max. 22 Ω max.
• Q 3.09a Shunt Capacitance C0 (pf max.) 5 pF max.
• Q 3.09b Motional Capacitance C1 (fF max.) - 5
• Q 3.10 Drive Level -
• Q 3.11 Drive Level -
• Q 3.12 Insulation Resistance -
• Q 3.13 Air-tightness -
• Q 3.14 Aging ±3 ppm max first year
