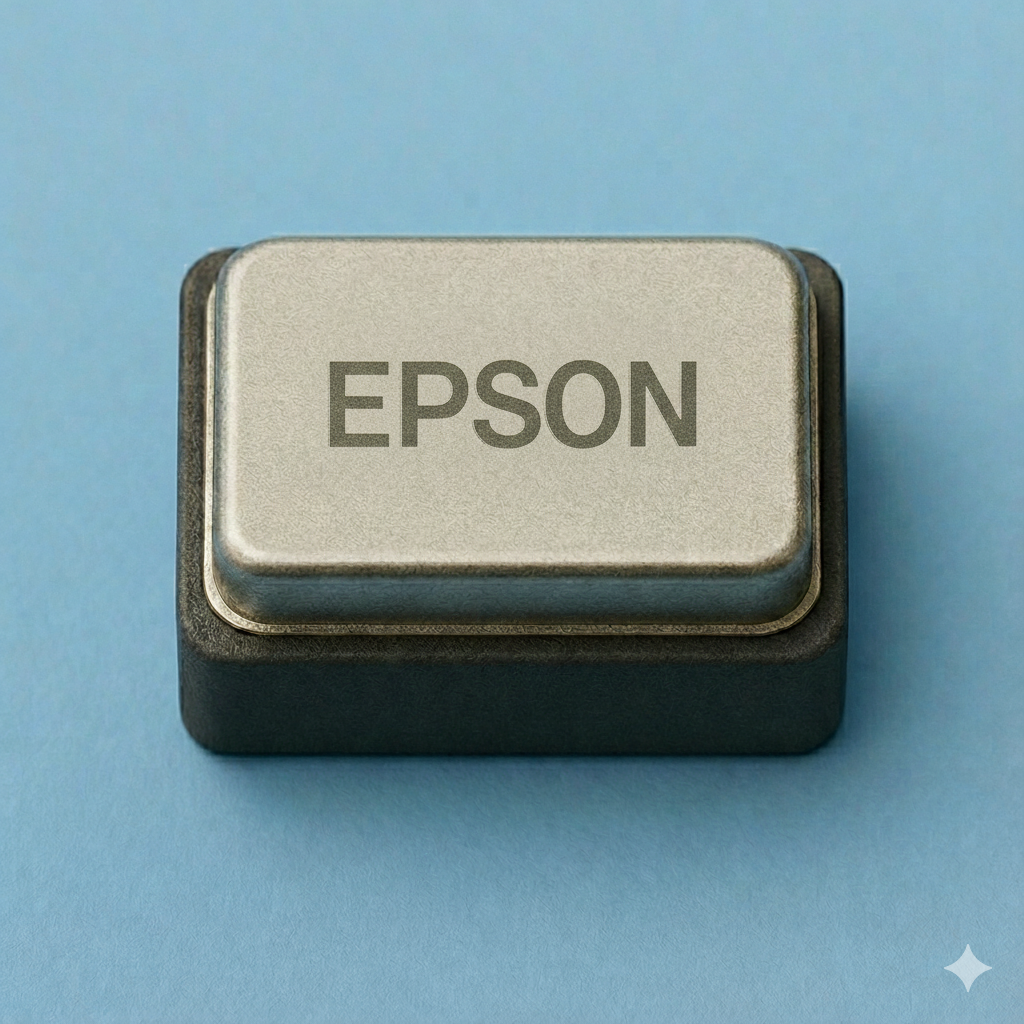

EPSON |VG-4231CA 32.000000MHZ GRC-F

• A 1.00 Manufacturer Name
  • UTECH
• A 1.02 Description
  • --- QPS2038400A30CI
• A 1.05 VPE TR3000
• A 1.06 Date Created
  • 17.06.2025
• A 1.07 Last Update
  • 2025-07-18
• T 3.11 Storage Temperature Range
  • -40° ～ +85°C
• T 3.12 Frequency Stability Vs Supply Voltage (±5%)
  • ±0.2 ppm max
• T 3.13 Frequency Stability Vs Load (±10%)
  • ±0.3 ppm max
• T 3.14 Output Load
  • 15 pF
• T 3.15 Aging
  • ±1.0 ppm/year max
• T 3.01 Nominal Frequency (Fo)
  • 38.400000 MHz
• T 3.02 Oscillation Mode
  • Fundamental
• T 3.03 Supply Voltage (Vdd)
  • 3.0V±5%
• T 3.04 Input Current
  • 6 mA max.
• T 3.05 Output Waveform
  • CMOS
• T 3.06 a “0” Level
  • 0.2 * Vdd max
• T 3.06 b “1” Level
  • 0.8 * Vdd min
• T 3.07 Duty Cycle
  • 45% ~ 55%
• T 3.08 Frequency Tolerance After Reflow (at +25℃)
  • ±1.0 ppm max
• T 3.09 Frequency Stability Vs Temperature Range
  • ±2.5 ppm max
• T 3.10 Operating Temperature Range
  • -40°C ～ +85℃
