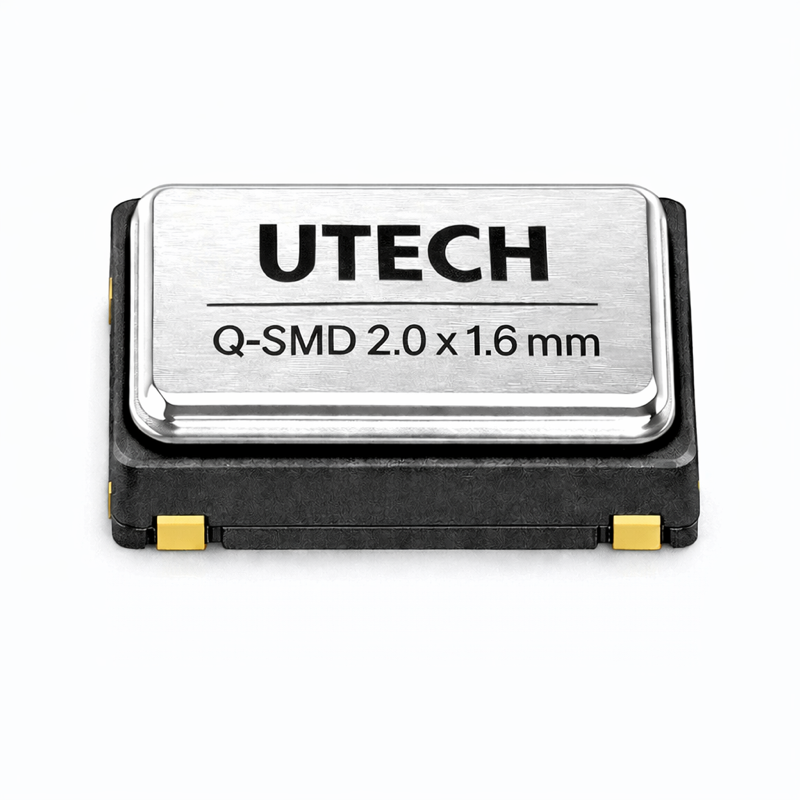

Q-SMD2016-M4-40.000000 MHz-FU-20-9/9-2070

Q-SMD2016-M4-40.000000 MHz-FU-20-9/9-2070

SUZHOU UTECH TECHNOLOGY CO.,LTD
QRS1
TR3000

0,0000 EUR

A 1.00 Manufacturer Name
- UTECH
A 1.01 Manufacturer Part No.
A 1.02 Description
- Quartz Crystal Resonator
A 1.04 Dimension & Type
A 1.05 VPE
A 1.06 Date Created
- 2026-01
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.:
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09a Shunt Capacitance C0 (pf max.)
Q 3.09b Motional Capacitance C1 (fF max.)
Q 3.10 Drive Level
Q 3.11 Drive Level
Q 3.12 Insulation Resistance
Q 3.13 Air-tightness
Q 3.14 Aging
Q 1.4 Version---
Q 3.09a Shunt Capacitance C0
- 3
Q 3.09b Motional Capacitance C1
- 5

Diese Kombination existiert nicht.

In den Warenkorb

Geschäftsbedingungen
30-Tage-Geld-zurück-Garantie
Versand: 2-3 Geschäftstage

Spezifikationen

ALLGEMEIN
A 1.00 Manufacturer Name	UTECH
A 1.01 Manufacturer Part No.	-
A 1.02 Description	Quartz Crystal Resonator
A 1.04 Dimension & Type	SMD2016 (2.0 x 1.6 mm)
A 1.05 VPE	TR3000
A 1.06 Date Created	2026-01

QUARZ
Q 3.01 Nominal frequency (Fo)	40.000000 MHz
Q 3.02 Oscillation Mode	Fundamental AT
Q 3.03 Load Capacitance (CL)	20.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	±9 ppm max.
Q 3.05 Freq. Stability Vs Temp. max.:	±9 ppm max.
Q 3.06 Operating Temp. Range	-20°C ~ +70°C
Q 3.07 Storage Temp. Range	-55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR)	40 Ω max.
Q 3.09a Shunt Capacitance C0 (pf max.)	5 pF max.
Q 3.09b Motional Capacitance C1 (fF max.)	5
Q 3.10 Drive Level	-
Q 3.11 Drive Level	-
Q 3.12 Insulation Resistance	-
Q 3.13 Air-tightness	-
Q 3.14 Aging	-

Nicht kategorisiert
Q 1.4 Version---	-
Q 3.09a Shunt Capacitance C0	3
Q 3.09b Motional Capacitance C1	5
