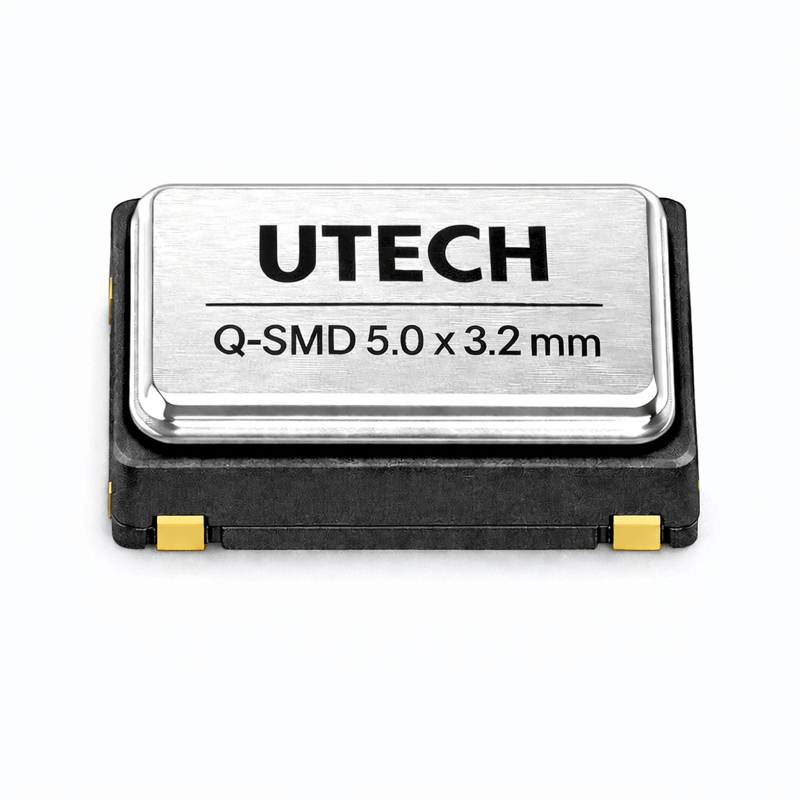

Q-SMD5032-M4-8.000000 MHz-FU-18-10/10-2070

• A 1.00 Manufacturer Name
  • UTECH
• A 1.02 Description
  • Quartz Crystal Resonator
• A 1.04 Dimension & Type SMD5032 (5.0 x 3.2 mm)
• Q 3.01 Nominal frequency (Fo) 8.000000 MHz
• Q 3.02 Oscillation Mode Fundamental AT
• Q 3.03 Load Capacitance (CL) 18.0 pF
• Q 3.04 Freq. Tol. max. (at +25℃) ±10 ppm max.
• Q 3.05 Freq. Stability Vs Temp. max.: ±10 ppm max.
• Q 3.06 Operating Temp. Range -20°C ~ +70°C
• Q 3.07 Storage Temp. Range -55°C ~ +125°C
• Q 3.08 Equivalent Res. (ESR) 40 Ω max.
• Q 3.09 Shunt Capacitance C0 (pf max.) 1.0
• Q 3.10 Motional Capacitance C1 (fF max.) 3.0
• Q 3.11 Drive Level (Typical) -
• Q 3.12 Drive Level (Max.) -
• Q 3.13 Insulation Resistance More than 500 MΩ @ DC 100V
• Q 3.14 Air-tightness Less than 1´10-9 Pa m3/s (Helium leak detector)
• Q 3.15 Aging ±1 ppm max first year
